Gazelle Bikes Rental Arroyo C7
Details
These bikes were part of our rental fleet. Miles will vary per bike, but all have less than 150 miles.
All of the bikes have Tannus Tire Armour Inserts and sealant installed to reduce the risks of flats.

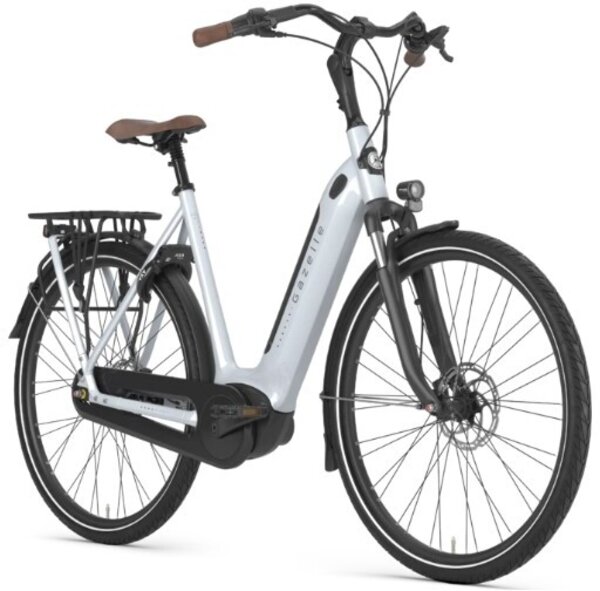

The Gazelle Arroyo C7 HMB Elite embodies the spirit of the classic Dutch bike with some delightfully modern benefits. A roomy step-through frame welcomes a range of riders, while an integrated in-tube battery and mid-mounted motor offers a graceful silhouette, a balanced ride feel, and stealthy power. Fully loaded with functional accessories and boasting a comfort-optimized, relaxed riding position, this bike is ideal for city trips and well beyond.
- Battery recharge Time: 3-4 hours
- Max Assisted Speed: 20 mph
- Range: 40 - 80 miles
| Frame Size | Small (46) | Medium (53) | Large (57) |
|---|---|---|---|
| Standover (mm) | 436 | 436 | 436 |
| Effective top tube length (mm) | 571 | 593 | 605 |
| Head tube angle (°) | 68.5 | 68.5 | 68.5 |
| Effective seat tube angle (°) | 69.5 | 69.5 | 69.5 |
| Chainstay length (mm) | 482 | 482 | 482 |
| BB drop (mm) | 60 | 60 | 60 |
| Head tube length (mm) | 145 | 165 | 165 |
| Fork length (mm) | 475 | 475 | 475 |
| Fork offset (mm) | 55 | 55 | 55 |
| Wheelbase (mm) | 1097 | 1120 | 1131 |
| Stack (mm) | 621 | 640 | 640 |
| Reach (mm) | 339 | 354 | 366 |
| Height (rider) | Frame Size |
|---|---|
| 4'10" - 5'6" | Small (46) |
| 5'6"- 5'10" | Medium (53) |
| 5'10" - 6'3" | Large (57) |
Specs
| Frame | Alloy |
|---|---|
| Fork | Aluminum, telescopic sprung, 40 mm |
| Rims/Wheels | Rodi Viper |
| Hubs | Shimano Nexus, 7 speeds, freewheel |
| Spokes | Stainless steel, extra strong |
| Tires | Schwalbe Energizer Active Plus, 47-622 |
| Crankset | Aluminum |
| Chain | KMC extra strong, special for e-bike |
| Rear Derailleur | Shimano Nexus, 7 speeds, freewheel |
| Shifters | Shimano Nexus 7 |
| Handlebars | Aluminum, comfort curved model |
| Tape/Grips | Gazelle Aerowing |
| Stem | Gazelle Switch, manually steplessly adjustable |
| Brake Levers | Tektro |
| Brakes | Tektro, HD-T280, 2 piston |
| Saddle | Selle Royal Herz |
| Seat Post | Sprung |
| Accessories & Extras | Trelock Veo 50, LED headlamp |
| Motor | Bosch Active Line Plus 3.0 (50Nm) |
| Battery | Bosch Integrated 500Wh |
| Controller/Display | Bosch Purion |
| Charger | 2 amp |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Saturn Blue Low-Entry Medium RE04 | RG3180-1 | 210000062285 |
