Details

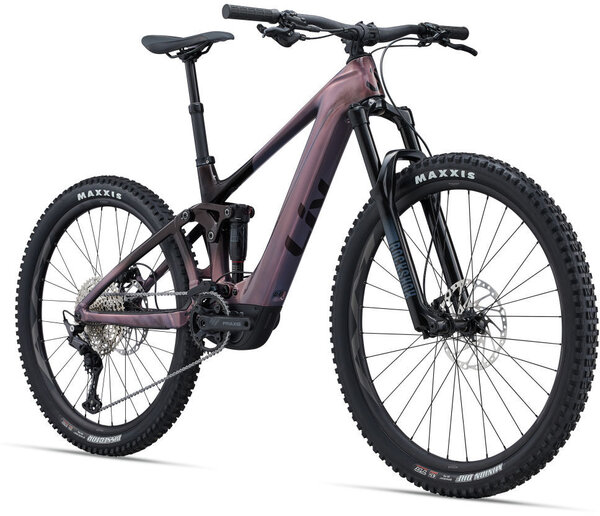

Intrigue X Advanced E+ EL 3 20MPH L Mirage/Cordovan
X-Small | Small | Medium | Large | ||
---|---|---|---|---|---|
LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
A | SEAT TUBE LENGTH (inch) | 15 | 15.7 | 16.7 | 17.7 |
B | SEAT TUBE ANGLE | 77.2° | 78.0° | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° |
C | TOP TUBE LENGTH (inch) | 21.9 | 21.9 | 22.5 | 22.4 | 23.5 | 23.4 | 24.5 | 24.4 |
D | HEAD TUBE LENGTH (inch) | 3.7 | 3.7 | 3.9 | 4.5 |
E | HEAD TUBE ANGLE | 65.7° | 66.5° | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
G | TRAIL (inch) | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 |
H | WHEELBASE (inch) | 46.2 | 46.3 | 46.8 | 46.9 | 47.2 | 47.3 | 48.3 | 48.4 |
I | CHAIN STAY LENGTH (inch) | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
J | BOTTOM BRACKET DROP (inch) | 1.2 | 0.8 | 1.2 | 0.8 | 1.2 | 0.8 | 1.2 | 0.8 |
K | STACK (inch) | 23.9 | 23.7 | 23.9 | 23.7 | 24.1 | 23.8 | 24.6 | 24.4 |
L | REACH (inch) | 16.5 | 16.8 | 17.1 | 17.4 | 17.5 | 17.8 | 18.3 | 18.6 |
M | STAND OVER HEIGHT (inch) | 28.4 | 28.7 | 28.6 | 28.9 | 28.2 | 28.6 | 28 | 28.5 |
N | HANDLEBAR WIDTH (inch) | 29.9 | 29.9 | 31.5 | 31.5 |
O | STEM LENGTH (inch) | 1.6 | 1.6 | 1.6 | 2 |
P | CRANK LENGTH (inch) | 6.3 | 6.3 | 6.5 | 6.5 |
Q | WHEEL SIZE | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" |
X-Small | 5'0" 5'4" |
---|---|
Small | 5'2" 5’7" |
Medium | 5'5" 5’9" |
Large | 5'7" 5’11" |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible MX (front 29", rear 27.5") |
---|---|
Fork | RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized |
Rear Shock | Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned |
Rims | Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimized |
Hubs | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro Spline Drive Body Thru-axle |
Spokes | Sapim E-Lite [R] Race [F], e-bike optimized |
Tires | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
Bottom Bracket | n/a |
Crankset | Praxis e-Cadet+ custom forged crankarm set (XS:160, S/M: 165, L:170) |
Chainrings | Praxis Wavetm 36T Cold Forged 4130 premium steel |
Shifters | Shimano Deore |
Front Derailleur | MRP HD2 co-moulded chain guide |
Rear Derailleur | Shimano Deore, 12-speed |
Cassette/Freewheel | Shimano CS-M6100-12, 10-51T, 12-speed |
Chain | KMC e.12 Turbo, EcoProteq, e-bike optimized |
Brakes | Shimano BR-M420, 4-piston, hydraulic disc, 203mm |
Brake Levers | Shimano Deore, I-spec EV |
Handlebars | Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L) |
Tape/Grips | Liv Tactal Pro-E Single Lock-On Grips |
Stem | Giant Contact SL 35 |
Seatpost | Giant Contact Switch, dropper, 30,9mm (XS-S: 100/ M:125/ L:150) |
Saddle | Liv Sylvia E+ |
Pedals | Sold separately |
Accessories & Extras | Tubeless kit (liquid, valves, levers, manual, tool) |
Motor | SyncDrive Pro2 85Nm, powered by Yamaha |
Battery | EnergyPak Smart 400 EnergyPak Plus range extender compatible |
Controller/Display | RideControl Ergo 3, RideControl GO integrated in T/T, ANT+ Wireless display compatible |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Mirage/Cordovan / Large | 4712878866928 | 2303355107 | 210000062225 |
