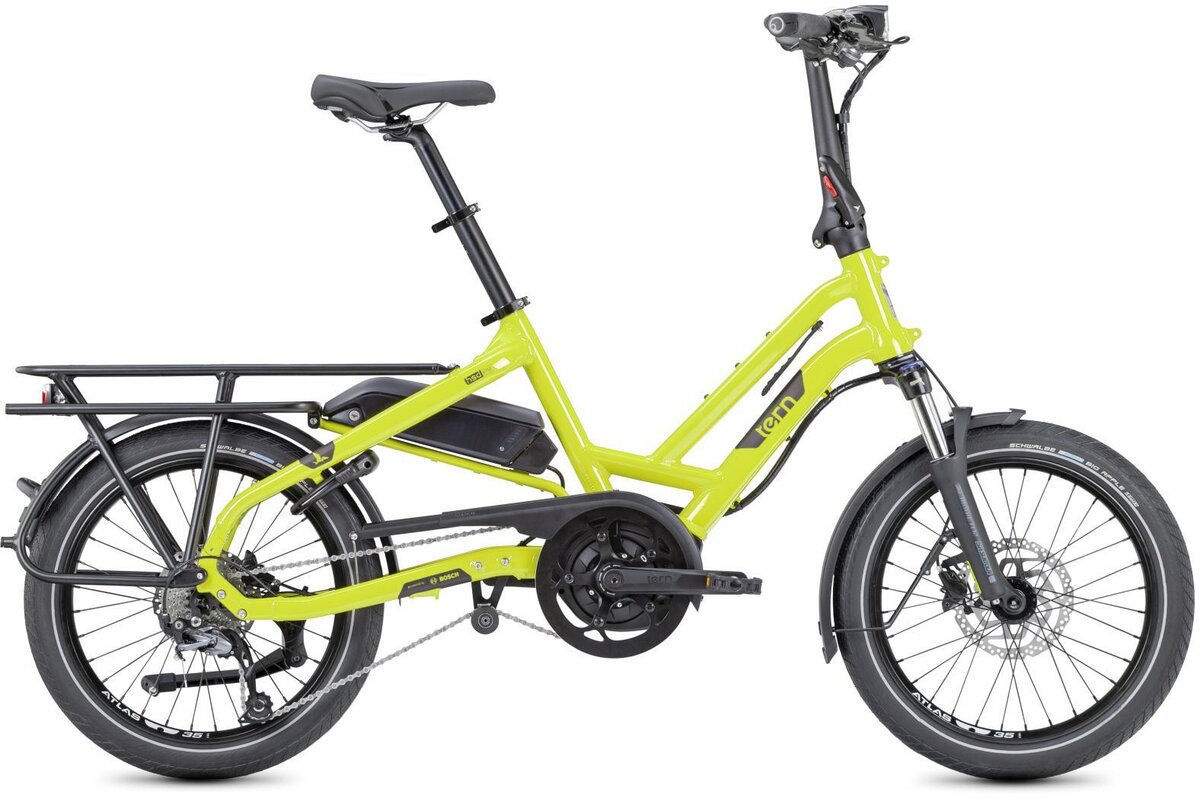

Tern HSD P9 Performance
This item is currently not available.
Details
Latest addition to the HSD lineup, ideal for tackling hills
Powerful Bosch® Performance Line motor for up to 65 Nm of torque
500 Wh battery for a range of up to 118 km (74 mi)
Custom Suntour suspension fork
9-speed Shimano® Alivio Shadow derailleur
Shimano hydraulic disc brakes
Abus® keyed-alike frame lock
Fits riders from 150 to 195 cm (4’11” – 6’5”)
Fits one Thule® Yepp Maxi, Yepp Nexxt Maxi, or Bobike® GO Maxi child seat—no adapters needed
Specs
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg |
|---|---|
| Fork | Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 170 kg |
| Headset | Tern Flux by FSA, cartridge bearings, Physis integrated |
| Rims/Wheels | Tern Atlas H, cargo wheel |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Crankset | Tern HSD custom |
| Bottom Bracket | Motor integrated |
| Chain | 9 spd, DHT for eBike, GST corrosion resistant coating |
| Rear Derailleur | Shimano Alivio Shadow |
| Rear Cogs | Shimano 11-32T, 9 spd |
| Shifters | Shimano Alivio, 1 x 9 spd, trigger |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted, |
| Tape/Grips | Ergon |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Brake Levers | Shimano, hydraulic disc, 180 mm rotor |
| Brakes | Shimano, hydraulic disc |
| Pedals | Urban with non-slip surface |
| Saddle | Tern Upright by Velo |
| Seat Post | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Seat Binder | Tern Collar |
| Motor | Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch PowerPack 500 |
| Display | Bosch Purion |
| Range | 500 Wh: 51-118 km (32-74 mi) |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
| Front Light | Tern Valo Direct, 190 lumens |
| Rear Light | Herrmans H-Trace, for eBike |
| Rack | Atlas H rack, Atlas Rack Mount, 6 point mounting, 60 kg capacity |
| Lock | ABUS, keyed-alike with Bosch battery |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Blue | 12-9-85 | 210000059012 |
| Limon | 12-9-84 | 210000059014 |
