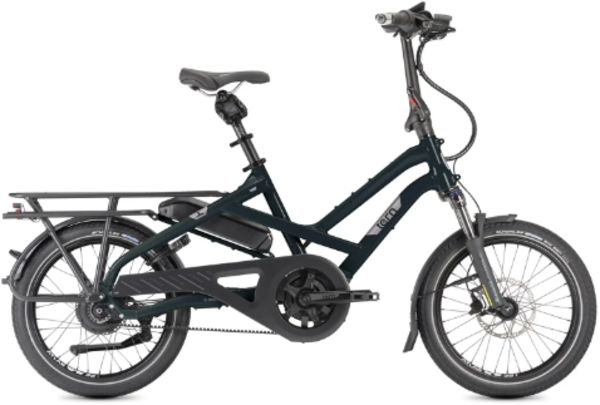

Tern HSD S00 (GEN 2)

Tern HSD S00 (GEN 2)
Color: Dark Blue
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store. 888-611-2453


Mighty But Mini
The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.

Haul With Confidence
The compact HSD electric cargo bike stuns with its heavy-hauling abilities. Load up on groceries, carry a furry friend, or make extended errand runs without worrying about overloading. A long wheelbase and extra-low center of gravity ensure easy handling and stability, even under load. The HSD is more than enough bike for reliable urban hauling.

Room for a Friend
Transform daily trips into exciting adventures by having a +1 tag along. And not just with your little ones. Rated to 80 kg, the sturdy Atlas H Rack is long and spacious enough to easily accommodate an adult passenger. And there’s a wide range of accessory choices to ensure a safe and comfortable ride. Weekend picnics and date nights just got a lot more fun!

Designed for Sharing
The HSD fits riders 150 – 195 cm tall (4’11” – 6’5”), and the cockpit adjusts in seconds to suit your riding position. It also makes it simple and easy to share the bike with family members. Smaller riders will also appreciate the low Easy-Step frame design for effortless (dis)mounting.

Smart Security
The HSD's smart electronic lock activates automatically when you park, disabling the e-bike system and helping prevent theft. Your smartphone serves as the no-fuss digital key for unlocking the bike. S-Class models also include a high- decibel alarm with flashing LEDs to deter tampering, along with text notifications and GPS tracking in case the bike moves significantly.


Frame Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Headset Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Rims/Wheels Front: Tern Atlas H, cargo wheel Rear: Tern Atlas H, cargo wheel
Hubs Front: Novatec, Thru-axle, sealed bearings Rear: Enviolo Heavy Duty, 380% continuously variable range
Spokes Stainless steel, double-butted
Tires Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Crankset Tern HSD custom, Gates CDX CNC machined beltring
Bottom Bracket Motor integrated
Chain Gates Carbon Drive CDX belt
Rear Derailleur Enviolo
Shifters Enviolo, Twist
Handlebars Tern Sweep, 6061-AL, Tern Andros adapted
Tape/Grips Ergon
Stem Tern Andros, adjustable, forged construction, patented technology
Brake Levers Magura MT4 e-stop, hydraulic, with brake light sensor
Brakes Front: Magura MT4, hydraulic disc, 180 mm rotor Rear: Magura MT4, hydraulic disc, 160 mm rotor
Pedals Urban with non-slip surface, sealed bearings
Saddle Tern Upright by Velo
Seat Post Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seat Binder Tern Collar
Accessories & Extras RACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity FRAME LOCK: ABUS, keyed-alike with Bosch battery
Color(s) Dark Blue
Sizes One size
Weight 29.4 kg (64.8 lb)
Motor Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery Bosch PowerPack 545
Lights Front: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam Rear: RearStop Brake Light, Always on
Display Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock

* Subject to change without notice.

Part Numbers

Option UPC MPN
Dark Blue 810067160995 12-91-87
