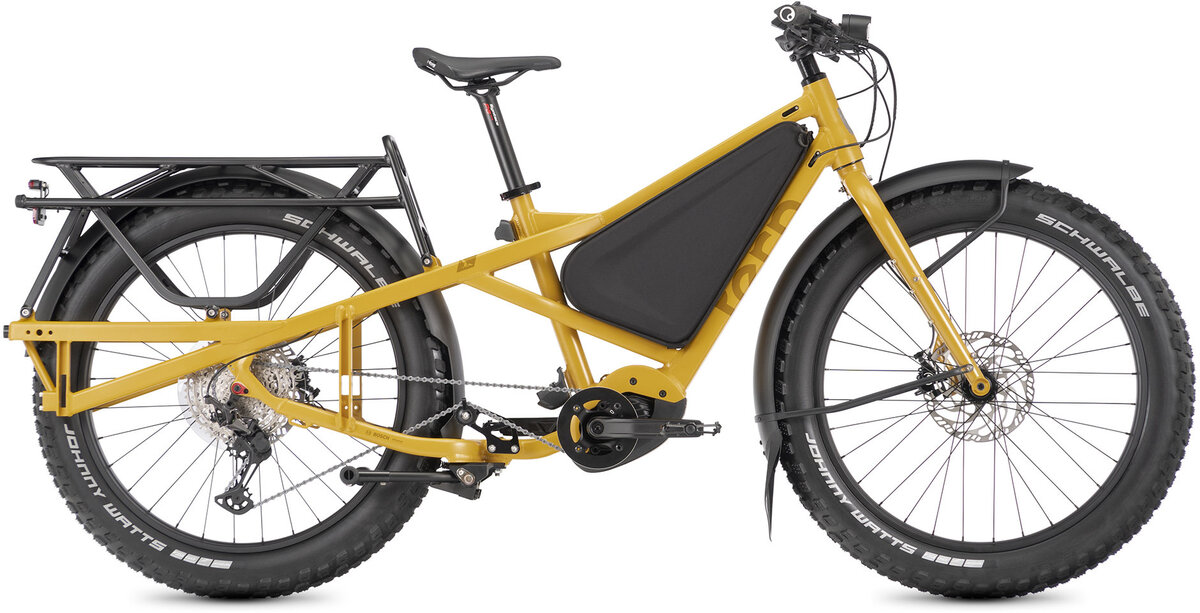

Tern OROX S12

Tern OROX S12
  • Color: Satin Highland Yellow
  • Color: Satin Pine
$6,499.00
Color:
Size:
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store. 888-611-2453

Details

Explore New Ground
The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed. This tenacious trooper packs up to two XL batteries to power you through extended off-grid explorations, and redefines what’s possible by bike with a massive Max Gross Vehicle Weight of up to 210 kg (462 lb) for best-in-class cargo capacity.

Orox highlights
Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support

Dual-battery system draws from up to two batteries for ultra-long range

Bosch Smart System with Connect Module lets you access and control advanced functions like eBike Alarm and eBike Tracking
Splash and dust-proof Kiox 300 color display with LED remote for intuitive control

Powerful and responsive Magura 4-piston hydraulic brakes
EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road

Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

  • Medium: 155-185  (5'1" - 6'1")
  • Large: 165-195 cm (5'5" - 6'5")
  • Medium Min: 610 mm (24") Max: 660 mm (26")
  • Large Min: 670 mm (26.4") Max: 730 mm (28.7")
  • Medium Min: 710 mm (28.0") Max: 990 mm (39.0")
  • Large Min: 765 mm (30.1") Max: 1045 mm (41.1")

Specs

Frame Tern Orox, 6061-AL, patented design, EFBE tested and approved
Fork Atlas X, butted chromoly steel, EFBE tested and approved
Headset FSA, 1.5", angular contact bearings
Rims/Wheels Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
Hubs Front Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx Rear Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
Spokes Stainless steel
Tires Vee Snow Ball, 27.5 x 4"
Crankset Tern Orox custom
Bottom Bracket Motor integrated
Chain KMC 12 spd, for eBike, EPT corrosion resistant coating
Rear Derailleur Shimano Deore XT Shadow+
Rear Cogs Shimano 10-51T, 12 spd
Shifters Shimano Deore, 1 x 12 spd
Handlebars Level Nine, AL-7050, 800 mm, riser, eMTB approved
Tape/Grips Ergon
Stem Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Brake Levers Magura MT5, hydraulic
Brakes Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Pedals MTB, non-slip
Saddle Ergon SM, E-Mountain Sport, CrMo Rail
Seat Post Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Seat Binder Tern Collar
Accessories & Extras Bell: Pitch Plus, brass Tool: Thru-axle lever, 4/5 mm, Torx 2.5 mm Chainguard: Custom Bash Guard Paint Protection: ToughShield film on top and downtube, self-healing Kickstand: Atlas Kickstand XL Cargo ready Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam Rear Light: LED w/ G-Sensed Brake Light Fenders: Aluminum, heavy duty construction, oversize stays, 27.5" Rack(s): Atlas X, 100 kg (220 lb) capacity
Motor Bosch Performance CX, max speed 20 mph (US)
Battery 725 Wh, Bosch Dual Battery pack ready
Display Bosch Kiox 300 w/ LED remote, electronic bike lock
Range 725 Wh: 84 - 146 km (52 - 91 mi); 1450 Wh: 168 - 292 km (104 - 181 mi)
Charger 100-240V, 4A (US)
Connect Module Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

* Subject to change without notice.

Part Numbers

Option MPN
Satin Highland Yellow / Medium: 155-185 (5'1" - 6'1") 18-9-03
Satin Highland Yellow / Large: 165-195 cm (5'5" - 6'5")
Satin Pine / Medium: 155-185 (5'1" - 6'1")
Satin Pine / Large: 165-195 cm (5'5" - 6'5")
