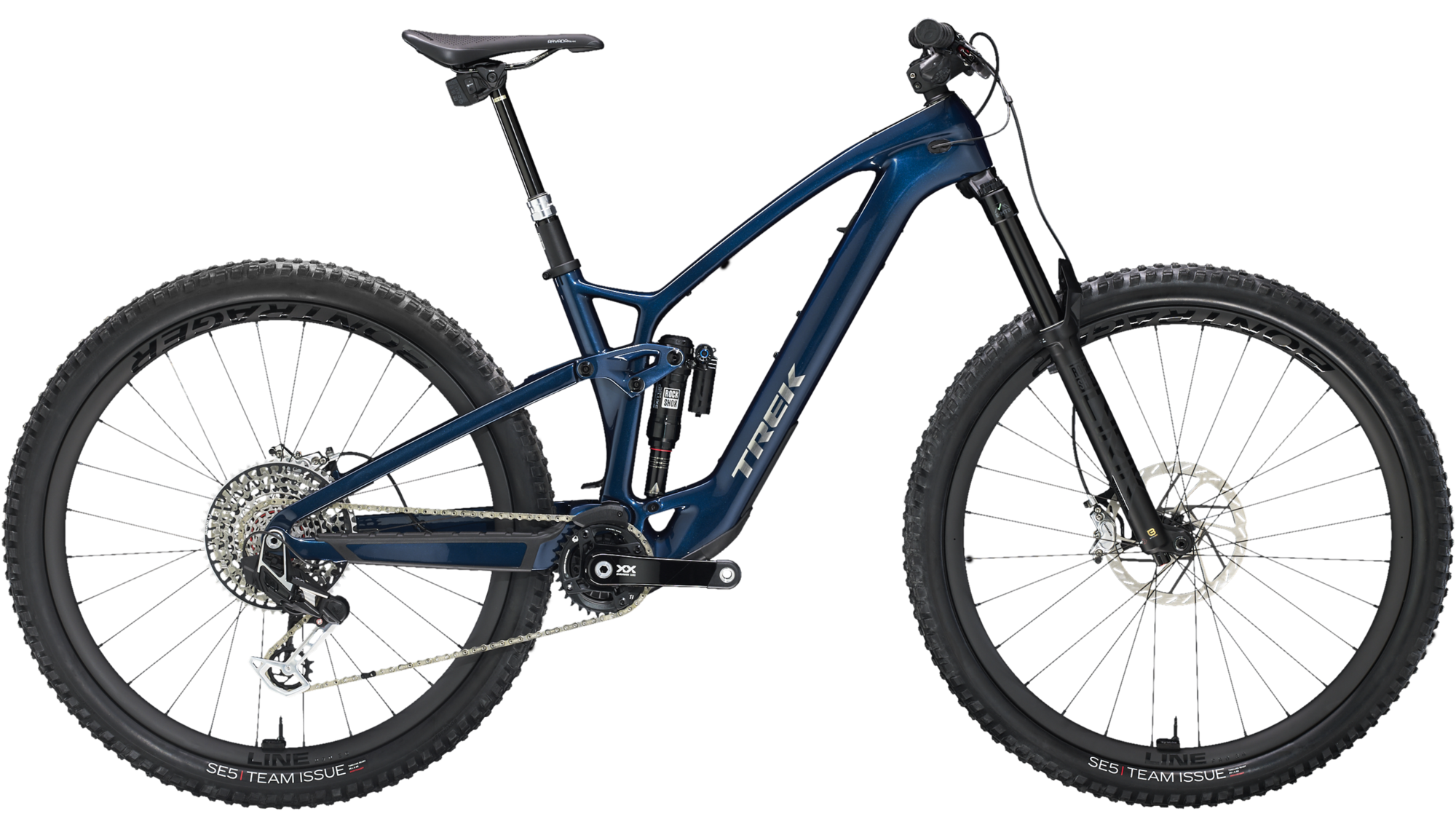

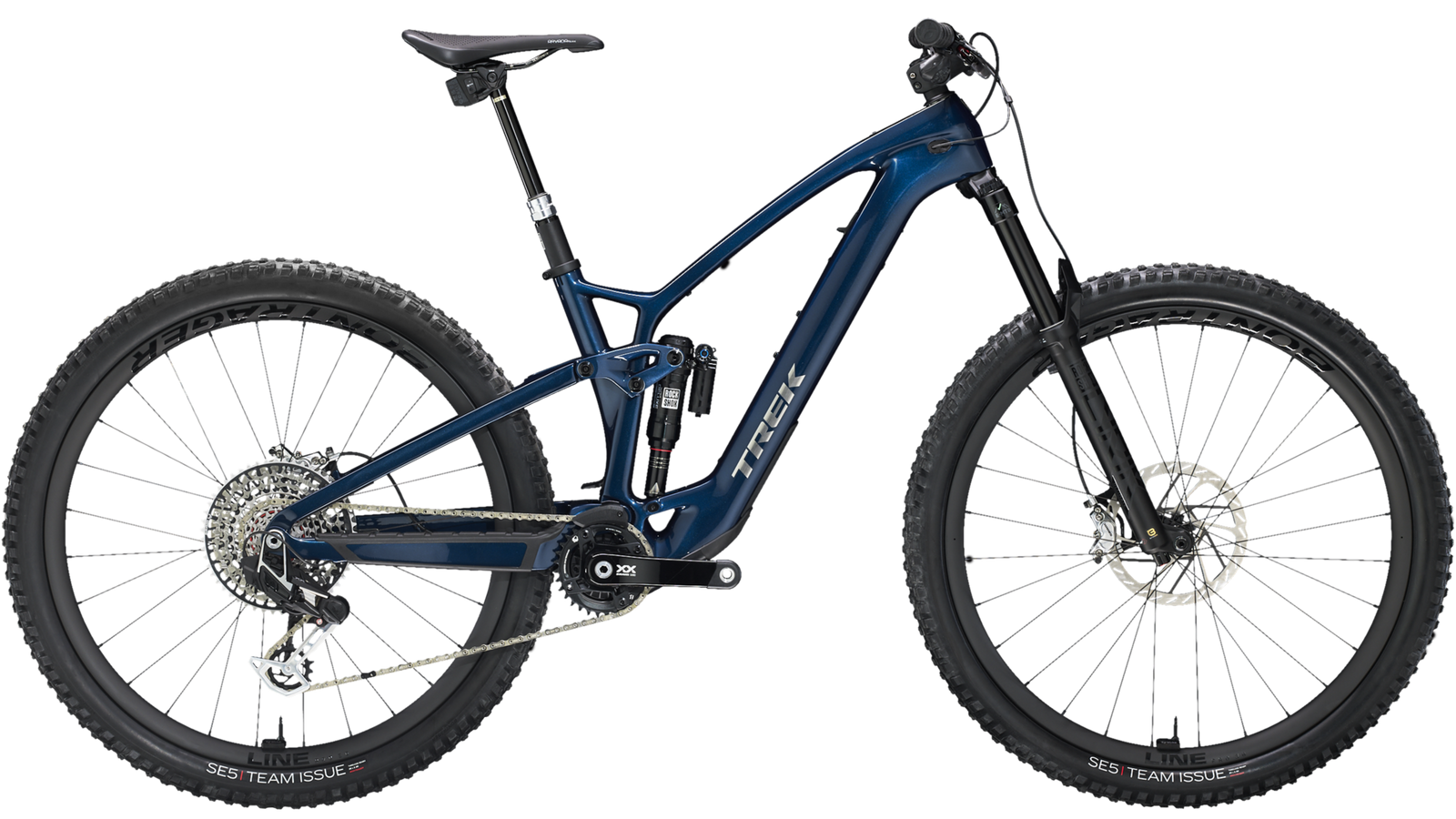

Fuel EXe 9.9 XX AXS T-Type - Mulsanne Blue - M - Demo Bike

This demo bike has been used, with fewer than 300 miles ridden.

Color: Mulsanne Blue

Size: Medium

Contact us with questions about this bike.

Frame
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel

Fork
RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 150mm travel

Shock
RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205mm x 60mm

Wheels

Wheel front
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''

Wheel rear
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''

Skewer rear
Bontrager Switch thru axle, removable lever

Tire
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''

Tire part
Quarq TyreWiz tire pressure monitors
Rim strip
Bontrager TLR

Max tire size
Frame: 29x2.50", Fork: See manufacturer

E-system

*Battery
Size: S, M, L, XL
SRAM AXS battery pack (with charger)

Size: S, M, L, XL
TQ 360Wh

Charger
TQ 4A charger

Computer
TQ LED display with Bluetooth & ANT+ connectivity

Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Drivetrain

Shifter
SRAM AXS POD Ultimate, paired with dropper

Rear derailleur
SRAM XX Eagle AXS, T-Type

Crank
SRAM XX, 165mm length

Chainring
SRAM T-Type, 32T, alloy

Cassette
SRAM Eagle XS-1297, T-Type, 10-52, 12 speed

Chain
SRAM XX Eagle, T-Type, 12 speed
Max chainring size
1x: 34T, min 30T

Components

Saddle
Bontrager Arvada, austenite rails, 138mm width
*Seatpost

Size: M
RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length

Size: M, L, XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length

Grips
Bontrager XR Trail Elite, nylon lock-on

Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom

Brake
SRAM Code Ultimate 4-piston hydraulic disc

Brake rotor
SRAM HS2, 6-bolt, 200mm

Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories
Tool
Bontrager BITS integrated multi-tool

Weight
M - 18.68 kg / 41.19 lbs (with TLR sealant, no tubes)

Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
