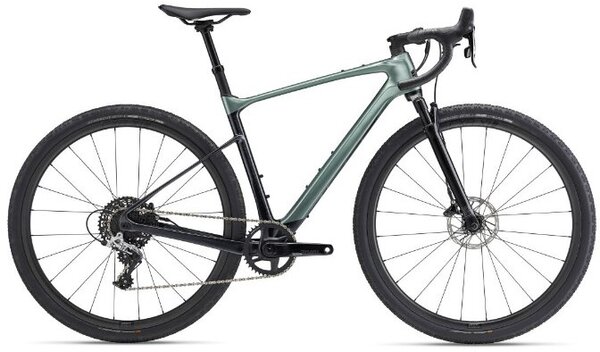

Giant Revolt X Advanced Pro 2

Details
Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This new composite gravel machine features a suspension fork and engineered compliance to help you float through all of it with speed and control.
Smooth control
Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.
Tuned compliance
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.
The Advanced composite frameset is designed with suspension-optimized geometry and paired with a 40mm travel fork, delivering a smooth, controlled ride quality on rugged gravel and dirt. A flip chip on the rear dropout lets you adjust the wheelbase and increase tire clearance up to 53mm. You can use the included dropper post, switch to a proprietary Giant D-Fuse seatpost for added compliance, or use a standard 30.9mm round seatpost. A Contact SL XR D-Fuse handlebar further minimizes fatigue by absorbing shocks and vibrations.
Specs
Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
---|---|
Fork | RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle |
Rims/Wheels | Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm |
Hubs | [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle |
Spokes | Sapim CX-Ray |
Tires | Giant CrossCut Grip 1, 700x45c, tubeless |
Crankset | SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | SRAM DUB, press fit |
Chain | SRAM PC-1130 |
Rear Derailleur | SRAM Rival 1 |
Rear Cogs | SRAM Rival, 11-speed, 11x42 |
Shifters | SRAM Rival 1, 1x11 |
Handlebars | Giant Contact SL XR D-Fuse, 16-degree flare XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm |
Tape/Grips | Stratus Lite 3.0 |
Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm |
Brake Levers | SRAM Rival 1, left lever dropper switch |
Brakes | SRAM Rival 1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm |
Pedals | N/A |
Saddle | Giant Approach SL |
Seat Post | Postmodern, dropper, 30.9mm with 25mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Misty Forest / X-Small | ||
Misty Forest / Small | 2302029104 | 210000061477 |
Misty Forest / Medium | 2302029105 | 210000061337 |
Misty Forest / Medium/Large | 2302029106 | 210000061379 |
Misty Forest / Large | 2302029107 | 210000061338 |
Misty Forest / X-Large |
