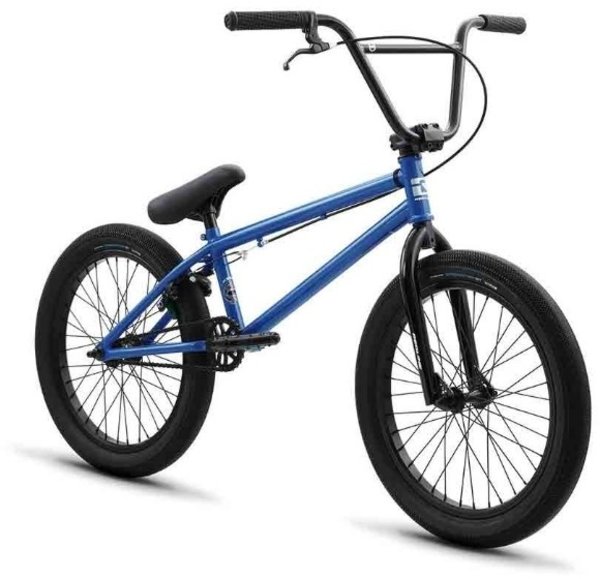

Redline Asset

Redline Asset
This item is currently not available.


The Asset is where it begins to get real. CrMo downtube. Big Box 9" bars. Sealed Mid BB. Sealed rear hub. 25/9 micro gearing. Monster Sealed Resin Pedals. Vee 20 x 2.35 VTC Speedster tires...the Asset is ready.


Frame Hi-Ten with Chromo downtube, Integrated Headtube
Fork Tapered leg w/ Chromo Steer
Headset Monster Integrated 1 1/8"
Rims/Wheels Alloy, 36h
Hubs Front: Aluminum, Chromo 3/8" Axle, Rear: Aluminum, Fully Sealed, Chromo 14mm Axle
Tires Vee 20 x 2.35 VTC Speedster
Crankset 100% Heat treated Chromo 3pc,175mm
Chainwheel 25t, Alloy
Bottom Bracket Sealed Mid BB
Chain KMC S1
Freewheel 9t
Handlebars Hi-Ten 8.75" Rise/ 28.5" Wide 12 deg Back, 1 deg Up
Tape/Grips Monster 151 Flangeless w/Plugs
Stem Front Load, 50mm
Brakes Tektro 907A Rear U
Pedals Monster, Sealed Bearing, Ultra Low profile Resin Platform w/Chromo Spindle
Saddle Monster Fat Padded Combo Saddle w/25.4 Post
Seat Post 25.4

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Blue 06-0510101 48982
Green 06-0510100 48984
