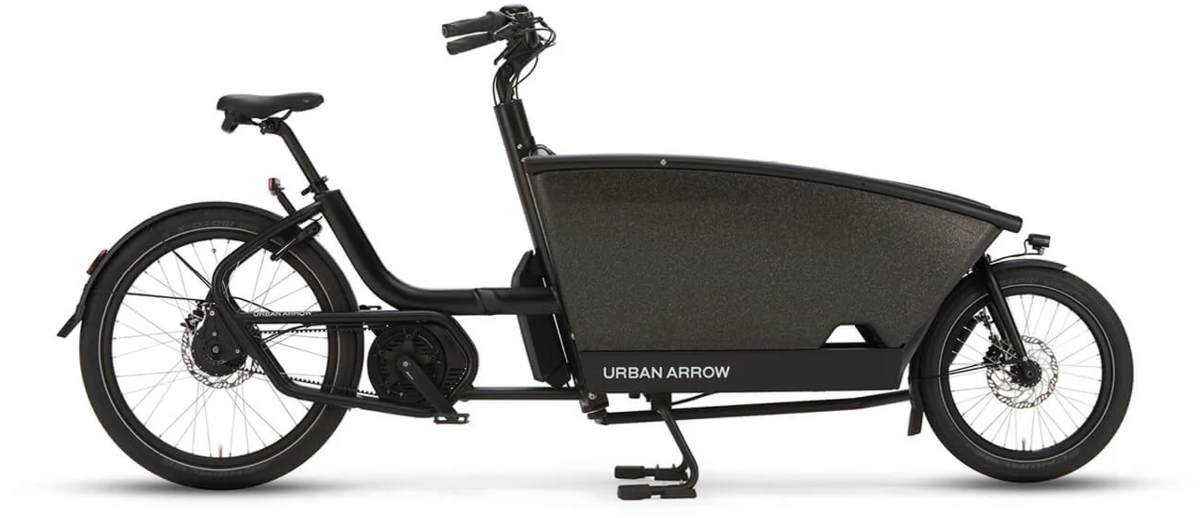

Urban Arrow Urban Arrow Family

Urban Arrow Urban Arrow Family
  • Color: Black
  • Color: White
$7,999.00
Please select options
Certain brands do not permit their items to be shipped. Order online and pickup in-store for free.

Details

An investment in freedom

Meet the newest member of your tribe. One that takes you and your children wherever you want to go. No more worries about your busy schedule, kids needing to be places, fetching groceries or shopping trips. Zip through the city effortlessly, or enjoy a trip to the woods or the beach. One ride and you’ll be hooked!

Due to its spacious box, the Urban Arrow Family cargo bike can effortlessly transport the whole family. Install a car seat or extra bench without losing valuable space. A fourth passenger or extra luggage? It can be mounted on the rear carrier with ease.

Always prepared on the go with our wide range of Urban Arrow accessories. Protect your cargo with our rain- or suncover. Expand your bike potential with our extra bench, floor mat or rear carrier. In need of some theft protection? We’ve got you covered here too. With Urban Arrow Connected you are always connected to your bike. Ready for every ride. Wherever you are.

Key Features
Cargo Line motor with a 500Wh battery for miles of smiles.

Deck out your Urban Arrow with some of the very well-thought-out accessories.

Motor: From making deliveries, collecting the kids from kindergarten to doing the shopping – the new Cargo Line, which is designed especially for cargo bikes, makes transport easy. With a torque of up to 85 nm, the powerful Cargo Line offers full support even at low cadences. The Cargo Line offers up to 400% of powerful support with a permissible total weight of up to 250 kg.

Specs

Fork Rigid 110×15 thru axle tapered
Rims/Wheels Ryde Andra 29 Black 26”, Ryde Andra 40 Black 20”
Hubs Rear Hub: Enviolo Heavy Duty
Tires Schwalbe Super Moto 62-406, Schwalbe Super Moto 62-559
Crankset Miranda Delta
Chain Gates belt drive
Shifters Enviolo Twist Display pro
Handlebars Ergotec Moon cruiser 31.8
Tape/Grips Ergon GC10
Stem 110mm 31.8mm adjustable
Brakes Magura
Pedals VP 836
Saddle Selle Royal Rio Plus
Seat Post UA Custom
Accessories & Extras Mudguards, Front and Rear Lights
Motor Bosch Cargo Line
Battery Bosch 500Wh
Display Bosch KIOX
Bike Weight 50kg
Max Rider Weight 125kg
Max Total Weight 250kg
Average Range 50km
Bike Length 274cm
Bike Width 70cm
Bike Height 110cm

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Black UA2253013 210000061085
White UA2253011 210000061087
